| Brand | Codice Prodotto | Descrizione | Vedi Opzioni | |
|---|---|---|---|---|
 |
 |
6BK1700-0BA00-0AA2 |
MODULO DI COMUNICAZIONE LOGO! EIB QUALE INTERFACCIA TRA EIB E LOGO! PS 24 V DC/AC COLLEGABILE A BUS CON MAX.: 16 DI, 12 DO, 8 AI E 2 AO |  |
 |
|

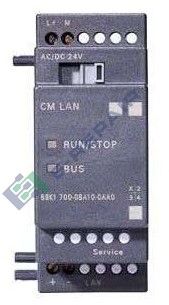

6BK1700-0BA10-0AA0 |
LOGO! COMMUNICATIONS MODULE LON | |
|
|
|
6BK1700-2AA00-0AA0 |
HS 716 MODULES SUBRACK | |
|
|
|
6BK1700-2AA00-0AA1 |
SIPLUS HCS716I rack - swing frame version - For holding up to 12 power output modules LA716, LA716I and LA716I HP | |
|
|
|
6BK1700-2AA10-0AA0 |
HS 716 MODULES SUBRACK | |
|
|
|
6BK1700-2AA10-0AA1 |
SIPLUS HCS716I rack - mounting frame version - For holding up to 12 power output modules LA716, LA716I and LA716I HP. The contacting of the L module via direct connectors on a bus PCB which the rear of the module rack connected. The control module with the ASIC DPC31 for PROFIBUS connection is on the right side section of the enclosure | |
|
|
|
6BK1700-2BA00-0AA0 |
SIPLUS HCS POWER OUTPUT UNIT LA724I | |
|
|
|
6BK1700-2BA10-0AA0 |
SIPLUS HCS724I Power output LA724I SSR for central connection ZA724I Order No.: 6BK1700-2BA30-0AA0) Note: All required connectors for conn. the power output are not included in the scope of delivery and can be ordered separately. For information on connection, see PMD: Connector for 24 V supply Order No.: A5E00210675 Connector for conn. the SSR Order No.: A5E00043661 Connector for SM 724 I Order No.: A5E00210670 Connector for phase LX Order No.: WKF: 40018384 | |
|
|
|
6BK1700-2BA20-0AA0 |
POWER OUTPUT MODULE FOR HEATING CONTROL SYSTEM SIPLUS HCS724I. LA 724I HP HEATING CONTROL SYSTEM POWER OUTPUT (HIGH POWER VERSION) FOR USE WITH A ZA724I (CENTRAL INTERFACE MODULE, ORDER NR.: 6BK1700-2BA30-0AA0) NOTE: THE 3 MATING CONNECTORS FOR CONNECTING LOADS ARE NOT INCLUDED IN THE SCOPE OF SUPPLY OF POWER OUTPUT MODULE AND CAN BE ORDERED OPTIONALLY UNDER ORDER NUMBER WKF:40018384 FOR ORDER SEE INFORMATION ABOUT CONNECTOR IN PMD. | |
|
|
|
6BK1700-2BA30-0AA0 |
CENTRAL INTERFACE MODULE FOR HEATING SYSTEM CONTROL, ZA 724I CENTR. INTERF. MODULE, CONNECTION TO PROFIBUS DP 12 MBAUD. POWER OUTPUT MODULES LA 724I, LA724IHP OR LA 724ISSR ARE REQUIRED FOR OPERATION | |
|
|
|
6BK1700-2BA40-0AA0 |
SIPLUS HCS724I Current transformer module SM724I can optionally be used in connection with the LA724I SSR (MLFB: 6BK1700-2BA10-0AA0) for error diagnostics for radiators connected in parallel | |
|
|
|
6BK1700-2BA70-0AA0 |
Power output module for heating control Power output LA 716 with 16 channels each max. 650 W Ventilated and non-ventilated. The 5x 20 mm fuses associated with each channel 5 A quick-response are (replaceable) Plugged onto open fuse holders. 2-phase power supply via front-side connection terminals. Heater outlets via 2x8-pole pin connectors (WEIDMUELLER SLT 8B, Order No. 161.177), Notice: Mating connectors are not included in scope of delivery | |
|
|
|
6BK1700-2BA70-0AA1 |
POWER OUTPUT MODULE LA 716 WITH 16 CHANNELS EACH MAX.650W WITH VENTILATION AND WITHOUT VENTILATION. THE 5 X 20 MM FUSES 5 AMP. QUICK-RESPONSE FOR EACH CHANNEL ARE PLUGGED ON OPEN FUSE HOLDERS AND ARE EXCHANGEABLE. 2-PHASE POWER SUPPLY VIA FRONT SIDE TERMI | |
|
|
|
6BK1700-4BA80-0AA0 |
SIPLUS HCS716I LA716I power output module with 16 channels max. 1150 W each. For operation, a rack is required. The 5x 20 mm fuses associated with each channel 5 A quick-response are (replaceable) to be plugged onto open fuse holders; 2-phase line infeed via front-side 3-pole connector (included in scope of supply). Radiator outlets via 2x8-pole pin connectors (not included in scope of supply) | |
|
|
|
6BK1700-4GA00-0AA0 |
DEVICE HOLDER FOR MOBIC T8 | |
